Direct to PCB inkjet printing

Direct to PCB inkjet printing  - Hack a Day

posted Nov 14th 2010 10:42am by
filed under: tool hacks

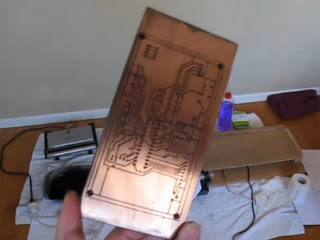

[Rhys Goodwin] has been working on a system to print resist onto copper clad using an inkjet printer. This is a toner transfer alternative as it still uses toner, just not quite as you’d expect. The first step is to modify an inkjet printer, separating the carriage from the feed rollers in order to increase the clearance for the substrate. Instead of printing with etch resistant ink, as we’ve seen before...


Here's another good video, with a few more Direct to PCB Printing tricks...
