Construction of a Simplified Wood Gas Generator for Fueling Internal Combustion Engines in a Petroleum Emergency

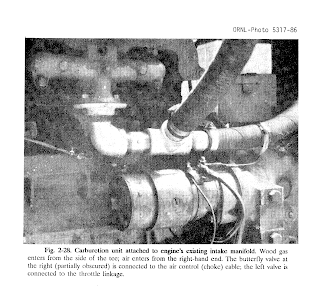

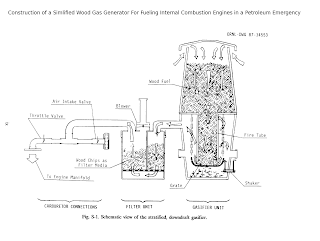

The Above, are some Pics I saved from the "Construction of a Simplified Wood Gas Generator for Fueling Internal Combustion Engines in a Petroleum Emergency" PDF file.

I found some interesting info on building a Wood Gas Generator today. I saw few videos (see links at bottom for videos) a while back by a guy who was building and selling something like this for Generating Power and Heat and I thought that was interesting. So, when I came across this info and PDF file today. I had to read it. The report has complete instructions on how to Build Your own Wood Gas Generator. It's called, "Construction of a Simplified Wood Gas Generator for Fueling Internal Combustion Engines in a Petroleum Emergency". And it was Written and Researched by FEMA in 1989. But, Wood Gas Generators are nothing new and using them to power Automobiles is Not New either. I just had never heard of this before. Below is the full Wood gas generator page from Wikipedia (the free online encyclopedia). Gasification (as it is also called) had been an important and common technology which was widely used to generate
Town gas from coal mainly for lighting purposes during the 19th and early 20th century. When the first stationary internal combustion engines based on the Otto cycle became available in the 1870s, they began displacing steam engines as prime movers in many works requiring stationary motive power. Adoption accelerated after the Otto engine's patent expired in 1886. The potential and practical applicability of gasification to internal combustion engines were well-understood from the earliest days of their development. Read More below and make sure and download the PDF and take a look at it too. Also, there are more reference links at the bottom of the page...

Don

Wood gas generator

Wood gas generator - Wikipedia, the free encyclopedia

From Wikipedia, the free encyclopedia
Jump to: navigation, search

Wood gasifier on a Ford truck converted to a tractor
A wood gas generator is a gasification unit which converts timber or charcoal into wood gas, a syngas consisting of atmospheric nitrogen, carbon monoxide, hydrogen, traces of methane, and other gases, which - after cooling and filtering - can then be used to power an internal combustion engine or for other purposes. Historically wood gas generators were often mounted on vehicles, but present studies and developments concentrate mostly on stationary plants.

Contents

History

Origins

Gasification had been an important and common technology which was widely used to generate Town gas from coal mainly for lighting purposes during the 19th and early 20th century. When the first stationary internal combustion engines based on the Otto cycle became available in the 1870s, they began displacing steam engines as prime movers in many works requiring stationary motive power. Adoption accelerated after the Otto engine's patent expired in 1886. The potential and practical applicability of gasification to internal combustion engines were well-understood from the earliest days of their development.
In 1873, Thaddeus S. C. Lowe developed and patented the water gas process by which large amounts of hydrogen gas could be generated for residential and commercial use in heating and lighting. Unlike the common coal gas, or coke gas which was used in municipal service, this gas provided a more efficient heating fuel.
During the late 19th century internal combustion engines were sometimes fueled by town gas, and during the early 20th century many stationary engines switched to using producer gas created from coke which was substantially cheaper than town gas which was based on the distillation (pyrolysis) of more expensive coal.
In about 1920 French inventor Georges Imbert created the "Imbert" downdraft generator.
During World War II gasoline was rationed and in short supply in Great Britain, United States and Germany large numbers of such generators were constructed or even improvised to convert wood and coal into fuel for vehicles. Commercial generators were in production before and after the war for use in special circumstances or in distressed economies.

Post WWII


Saab 99 running on wood gas in Finland. The gas generator is on the trailer.
The US Federal Emergency Management Agency (FEMA) published a book in March 1989 describing how to build a gas generator in an emergency when oil was not available.[1]
A project about the energy future of Europe was begun in 2005 in Güssing, Austria with contribution of European Union research furtherance. The project consisted of a power plant with a wood gas generator and a gas engine to convert the wood gas into 2 MW electric power and 4.5 MW heat. At the wood gas power plant are also two containers for experiments with wood gas. In one container is an experiment to convert wood gas, using the Fischer-Tropsch process, to a diesel-like fuel. By October 2005, it was possible to convert 5 kg wood into 1 litre fuel.

Design

There is a rich literature on gas-works, town-gas, gas-generation, wood-gas, and producer gas, that is now in the public domain due to its age.[2]
Most successful wood gas generators in use in Europe and the United States are some variation of the earlier Imbert design. Wood gas generators often use wood, however charcoal can also be used as a fuel, it is denser and produces a cleaner gas without the tarry volatiles and excessive water content of wood.
The FEMA unit from 1989 has distinct benefits over the earlier European units such as easier refueling and construction but is less popular than the earlier Imbert design because of significant new problems, which include a lack of a fixed oxidization zone and allows the oxidization zone to creep to a larger area, causing a drop in temperature; a lower operating temperature leads to tar production and it lacks a true reduction zone further increasing this design's propensity to produce tar. Tar in the wood gas stream is considered a dirty gas and tar will gum up a motor quickly, possibly leading to stuck valves, and rings.
A new design known as the Keith gasifier improves on the FEMA unit, incorporating extensive heat recovery and eliminating the tar problem. Testing at Auburn University has shown it to be 37% more efficient than running gasoline.[3] This system set the world speed record for biomass powered vehicles[4] and has made several cross country tours.[5][6]
The United Nations produced the FOA 72 document with details about their wood gas generator design and construction, as does World Bank technical paper 296.[7][8]

Advantages

Wood gas generators have a number of advantages over use of petroleum fuels:
  • They can be used to run internal-combustion engines (or even gas turbines, for maximal efficiency) using wood, a renewable resource, and in the absence of petroleum or natural gas, for example, during a fuel shortage.
  • They have a closed carbon cycle, contribute less to global warming, and are sustainable in nature.
  • They can be relatively easily fabricated in a crisis using materials on hand.
  • They are far cleaner burning than, say, a wood fire or even a gasoline-powered engine is (without emissions controls), producing little if any soot.
  • When used in a stationary design, they reach their true potential, as they are feasible to use in small combined heat and power scenarios (with heat recovery from the wood gas producer, and possibly the engine/generator, for example, to heat water for hydronic heating), even in industrialized countries, even during good economic times, provided that a sufficient supply of wood is attainable. Larger-scale installations can reap even better efficiencies, and are useful for district heating as well.

Disadvantages

The disadvantages of wood gas generators are:
  • the large specific size
  • the relatively slow starting speed; the time to heat the initially cold batch of wood to the necessary temperature level can take many minutes and in bigger plants even hours until the designed power is reached.
  • a batch burning operation, that some designs feature, and that regularly interrupts the gas producing process.
  • the stop operation out of a high load level is difficult (for example the stop of the engine using the gas): the residual heat still produces gas, which for a certain time leaves the gasifier either without control, or has to be used in a burner
  • the primary combustible fuel-gas produced during gasification is carbon monoxide: it is an intentional fuel-product, and is subsequently burned to safe carbon dioxide in the engine (or other application) along with the other fuel-gases; however, continuous exposure to carbon-monoxide can be fatal to humans even in small to moderate concentrations.
  • the humidity of the wood (usually 15 to 20%) and the water vapor created by the O- and H-atoms of the dry wood itself (about 0.4 liters of water loaded with organic substances per kg of dry wood) condenses during the gas cooling and filtering procedure and yields a liquid (see also wood tar), which needs specific waste water treatment. This treatment requires about 25 to 35% of the created wood gas energy.

Safety consideration

When not carefully designed and used, there exists considerable potential for injury or death due to wood gas containing a large percentage of poisonous carbon monoxide (CO) gas. Wood gasifiers of proven design and thoroughly tested construction are considered safe to use outdoors, or in a partially enclosed space, for example, under a shelter open to the air on two sides; they may also be considered relatively safe to use in an extremely well ventilated (e.g. negative pressure) indoor area not connected to any indoor area used for sleeping, equipped with redundant (more than 1), completely independent, battery-powered, regularly tested carbon-monoxide detectors. However, prudence must dictate that any sort of experimental wood gasifier design or new construction be thoroughly tested outdoors, and only outdoors, with a "buddy" at all times, and with constant vigilance for any sign of headache, drowsiness, or nausea, as these are the first symptoms of carbon monoxide poisoning.
In addition, mixtures of excessive quantities of air and gas should be avoided as this could lead to the deflagration (explosion) of the gas in question if a combustion source is present. Long-term storage of wood-gas, except through the use of a gasholder-type water-displacement apparatus, should not be attempted, due to the volatile elements present in the gas, which, if allowed to excessively precipitate, will condense in the storage vessel. Under no circumstances should wood-gas ever be compressed to more than 15 pounds per square inch (1.0 bar) above ambient, as this may induce condensation of volatiles, as well as lead to the likelihood of severe injury or death due to carbon monoxide or deflagration if the vessel leaks or fails.[citation needed]

Media coverage

In 2008, an example of designing and constructing a working wood gas generator powered truck was shown on the National Geographic Channel's Planet Mechanics in the eighth episode, "Tree Powered Car".[9]
In 2009, another example of designing and constructing a working wood gas powered generator engine was in the TV series The Colony in the second episode of the first season "Power Struggle". Also used in the tenth episode "Exodus" to power an escape vehicle.
In 2009 21stCenturyMotorworks was reported on mass media[citation needed] to have developed gasification technology in a prototype pickup truck that could use any biomass materials for fuel. The vehicle was displayed at multiple events including the 2009 Boston Greenfest. 21stcenturymotorworks has since been involved in developing a circumferential engine technology to improve the efficiency of biomass fueled energy systems. A new subsidiary, Eden Energy Solutions of Ct, is furthering development of residential based energy units involving a combination of these two technologies.
A 2010 Mother Earth News article discussed and showed pictures of a wood gas powered engine installed in a pickup truck.[10]
As part of the BBC science series "Bang Goes The Theory", a Volkswagen Scirocco was converted to a design by Martin Bacon to run on used coffee grounds, and after its build in 2010 was driven solely on coffee from London to Manchester successfully. Part of the team are now working on a more advanced design leaning towards top speed as opposed to range.
On Sept 14th 2011 at the Bonneville Salt Flats a truck modified with a wood gas powered engine set a new world speed record for vehicles powered by wood gas with a speed of 73 mph.[11]
On the popular US radio program Car Talk, a caller in episode 1201 (which aired on January 7, 2012, and was subsequently named "20 Miles Per Woodchip"), described a wood gas generating vehicle he rode in as a boy during World War II in Germany. The hosts were not familiar with the technology, likely because it was never widely adopted in the US.
An article appeared in Mother Earth News in April 2012 featuring the Keith gasifier, showing pictures and talking with inventor Wayne Keith.[12]
In the BBC documentary Wartime Farm, Episode 5 (aired October 2012) they built a coal gas powered ambulance according the specifications of a 1943 gas powered vehicle.[13]
